Floating fork carriage with hydraulic leveling

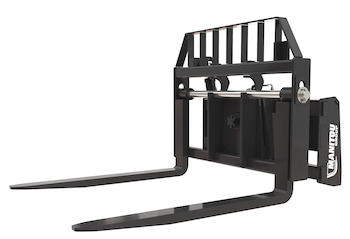

The hydraulic level fork carriage for the Manitou MTA / TH 519 telehandler levels +/- 10 degrees and is ideal for placing loads on worksites that have uneven terrain, especially on fixed telehandlers that do not have frame leveling.
 |
| The hydraulic level fork carriage for the Manitou MTA / TH 519 telehandler levels +/- 10 degrees and is ideal for placing loads on worksites that have uneven terrain, especially on fixed telehandlers that do not have frame leveling. |
The attachment has a universal quick-attach connection system that makes it easy to install, and it offers a capacity of 6,063 pounds at an overall weight of 1,080 pounds.
It has a fork length of 4 feet, a fork thickness of 2 inches and a fork width of 4 inches, with a hydraulic cylinder mounted on the right side of the frame to maximize visibility to the forks.
The attachment offers a minimum forks spread of 8 inches and a maximum spread of 3 feet, 9 inches.
