New generation of wheel loaders
Volvo Construction Equipment unveils its next generation of wheel loaders by introducing five models in North America in 2025.
 |

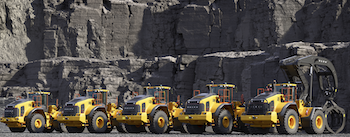

The first five models to launch are the L150, L180, L200 High Lift, L220 and L260. In addition to a fresh design, these revamped machines offer even faster cycle times, improved fuel consumption, enhanced operator comfort and the latest productivity-boosting technology.
The new-generation wheel loaders will be gradually introduced across select markets in 2025. New load-sensing hydraulics offer better responsiveness and faster lifting and lowering and automatic bucket leveling from both dump and curl positions are included. An intelligent Auto Bucket Fill option automates the throttle, lift and tilt hydraulics for a consistent fill every time.
Smart Control, a fuel-efficient engine mode, is now activated by default when the machine turns on, lowering fuel consumption by up to 4 percent without compromising productivity. The new loaders are also compatible with hydrotreated vegetable oil (HVO), which significantly reduces greenhouse gas emissions compared to conventional diesel.
The all-Volvo powertrain delivers stability and efficiency by synchronizing the transmission, engine and axles. The converter offers increased torque output for better performance at low speeds, while reduced gear step intervals provide faster acceleration and smoother operation. Technologies like Volvo OptiShift and Reverse By Braking also decrease cycle times and extend component lifespan.
For dependability in the most demanding applications, Volvo torque parallel linkage delivers high breakout torque and parallel movement throughout the lifting range. A wide selection of purpose-built buckets and attachments further enhances versatility.
The refreshed wheel loader cab prioritizes the operator’s comfort and convenience with improved storage options, new armrests, cupholders and USB ports, and a variety of seat options. The optional Comfort Drive Control system reduces fatigue by allowing the operator to steer with a single ergonomic lever.
The 12.8-inch Volvo Co-Pilot touchscreen is 20 percent larger than the prior version and can display up to four widgets at a time. It offers intuitive management of camera settings, climate control, machine status and more.
Visibility is enhanced by optional safety features like Volvo Smart View, which provides a 360-degree view of the loader’s surroundings via the Volvo Co-Pilot, and an updated collision mitigation system, which alerts operators to obstacles when reversing from speeds as low as 0.3 mph (0.5 km/h).
Other safety features include:
- Automatic traction control (L220 and L260)
- The ability to tilt the cab 30, 60 or 70 degrees for easy service access
- Flashing beacon inside the grill to indicate reversing
- Automatic work light under the grill
- New service platform and harness anchor points
- Brake wear indicators on the wheels
- High-definition rearview camera
- Battery disconnect switch with lockout-tagout (LOTO) functionality
Digital solutions for a smoother day
Customers can get even more out of their new loader with digital solutions like the Load Assist machine control system, which offers on-board weighing, operator coaching and tire pressure monitoring. A load ticket function is now available to streamline invoicing, while site services such as Connected Map and Performance Indicator help manage mixed-fleet job sites. These models are also eligible for ActiveCare Direct, an advanced telematics system that provides 24/7 monitoring and clear, actionable insights.
volvoce.com/united-states/en-us/products/wheel-loaders/
Key specifications
|
Model |
L150 |
L180 |
L200 High Lift |
L220 |
L260 |
|
Engine |
Volvo D13J |
Volvo D13J |
Volvo D13J |
Volvo D13J |
Volvo D13J |
|
Gross power |
299 / 223 |
335 / 250 |
335 / 250 |
374 / 279 |
414 / 309 |
|
Operating weight |
53,131–56,438 / 24,100–25,600 |
59,525–62,611 / 27,000–28,400 |
77,162–88,185 / 35,000–40,000 |
68,784–72,973 / 31,200–33,100 |
74,957–85,980 / 34,000–39,000 |
|
Bucket capacity |
4.4–18.3 / |
4.8–20.9 / |
n/a |
5.6–20.9 / |
6.9–13.3 / |
|
Log grapples |
17.2–37.7 / |
19.4–37.7 / |
36.6–46.3 / |
19.4–43.0 / |
|
|
Static tipping load at full turn |
35,274 / 16,000 |
41,667 / 18,900 |
|
46,297 / 21,000 |
52,470 / 23,800 |
|
Breakout force |
45,187 / 201 |
53,055 / 236 |
|
55,078 / 245 |
63,846 / 284 |
|
Max power at |
1300 |
1300–1400 |
1300–1400 |
1300–1400 |
1400–1900 |
|
Max torque at |
1000 |
1000 |
1000 |
1000 |
1100–1150 |
|
Tires |
26.5 R25, 775/65 R29 |
26.5 R25, 775/65 R29, 875/65 R29 |
775/65 R29, 875/65 R29 |
29.5 R25, 875/65 R29 |
29.5 R25, 875/65 R29 |
