Next-generation excavator

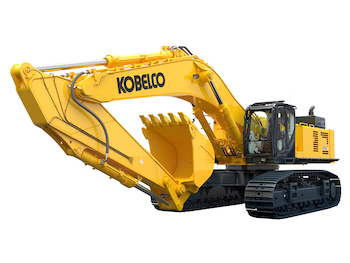

Kobelco Introduces the SK850LC-11 next generation excavator.
 |
| Kobelco Introduces the SK850LC-11 next generation excavator that weighs in at around 186,000 pounds. This 85-ton crawler excavator offers the perfect combination of power and stability in large capacity applications. |
This large Next-Generation-11 machine delivers superior performance, greater efficiency, and is loaded with standard features.
Weighing in at around 186,000 pounds, this 85-ton crawler excavator offers the perfect combination of power and stability in large capacity applications. The machine includes a new 512 horsepower Isuzu Tier IV Final engine with power and torque to lift heavy loads and operate large tools with ease. Power meets fuel savings with the combination of Kobelco’s boom to arm hydraulic regeneration system, ECO-Mode, auto idle stop and auto engine deceleration. Customers will find the SK850LC-11 will load more trucks and move more material more efficiently.
SK850LC-11 hydraulic system: power and versatility
The highly efficient yet powerful hydraulic system minimizes fuel consumption while maximizing power. The pilot-controlled hydraulic system delivers smooth response to operator input with an outstanding digging force of 90,598 foot-pounds and an arm force of 61,148 foot-pounds. Featuring auto warm-up, combination rotation with two-way nibbler breaker with case drain, ISO/BHL pattern changer, and boom and arm safety valves. Having the ability to multifunction while travelling (lift, swing, and carry) is provided due to the exclusive independent travel function. With the press of a switch, the machine dedicates one hydraulic pump to the travel system and one to all the other functions. This allows the -11 series to smoothly travel while having the ability lift and swing heavy loads where most of the competition cannot. Heavy Lift and Power Boost with unlimited time use selection adds the power needed to get through the toughest conditions, and the in-cab hydraulic pressure release function allows customers to change work tools or hoses easily and safely.
Durability and maintenance
A heavy-duty exterior includes a retractable undercarriage, three track guides, belly guards, swivel guard and folding cat walks. For added safety, the machine has six front and four rear LED work lights, exclusive rear swing flashers, battery disconnect switch and a heavy-duty Level II FOPS cab guard that opens for easy cleaning.
Additionally, the powerful reversable fan and removable clean out screens keep the machine running cool.
Commitment to safety, comfort, and technological innovations
The -11 series features cabin environments with enhanced ergonomics and safety features with best-in-class cabin space and visibility. This cabin includes a seven-way adjustable, heated air suspension seat that moves together with the armrests and hydraulic controls to reduce operator fatigue, provides excellent shock absorption and superior ride comfort. The operator’s pilot levers move horizontally without arching of the wrist, while also providing shorter lever strokes to deliver a swifter, more precise movement.
Multiple air conditioning and heater vents are directed towards the operator to maximize comfort. On the right-side console there is a jog dial that integrates multiple functions into a single user interface with the large 10-inch color monitor. This easy-to-operate menu screen facilitates reading of important information including work mode, maintenance intervals, and fuel consumption, as well as providing a 270-degree view from the machine’s standard three camera system. The hydraulic flow-rate modes of the breaker, nibbler, and rotating grapple are also now fully adjustable by the operator through the monitor, and the mode settings for other attachments, such as a hammer, can also be easily added or changed to customize the operator’s experience. In addition, all internal switches and dials in the cabin have LED backlighting to provide a bright, clear view in the dark. To top it off, the cabin is equipped with an FM/AM, AUX, Bluetooth, hands-free telephone radio, smartphone holder, USB charger, and a 12V power outlet. Adding to the standard features is our KOMEXS telematic system, K-LOAD weighing system, and a 4-year, or 4,000 hour limited full machine warranty. Optional items include a front cab guard and removable counterweight.
Since 1930, we’ve built KOBELCO excavators known for quality, innovation, and performance. The new SK850LC11 is just one of the many new models that KOBELCO is excited to bring to the North American market.
