Next-generation compact track loader

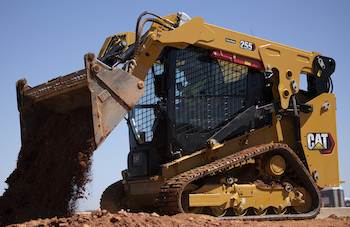

Cat 255 compact track loader delivers industry-leading lift and tilt breakout forces and significantly increased torque.
 |
| Building on D3 series compact track loader success, the next generation Cat 255 compact track loader is a ground-up redesign of the previous series, improving on the features that made the previous models so popular. |
Building on D3 series compact track loader success, the next generation Cat 255 compact track loader is a ground-up redesign of the previous series, improving on the features that made the previous models so popular.
The 255 elevates Caterpillar’s loader reputation through improved engine performance, lift and tilt performance, stability, operator comfort and technology.
“We kept the DNA of the D3 series while reimagining the possibilities of loader performance using voice of customer feedback to lead the way,” says Trevor Chase, product application specialist for Caterpillar. “Both next generation models leverage the many benefits offered by the vertical lift design. The new Cat 255 replaces the 259D3 machines”
It is powered by a Cat C2.8T engine which offers 74.3 horsepower. The engine maintains horsepower across a wider rpm range and has a significant torque increase of 13 percent for improved working performance. A redesigned engine compartment mounts the engine and cooling package lower into the frame for improved stability, giving the operator confidence in handling heavy loads and throughout all aspects of the work cycles.
The new 255 loader delivers class-leading lift height, and compared to the 259D3, delivers 36 percent more tilt breakout, 26 percent higher lift breakout force and a 24 percent increase in rated operating capacity (ROC).
Standard hydraulic system pressure is increased to 3,500 psi and the closed-center auxiliary hydraulic system allows the 255 to operate all Cat Smart Attachments, including the Cat Smart Dozer Blade, with the standard auxiliary hydraulics provided. Both models are shipped from the factory outfitted as “High Flow ready.” High Flow functionality is easily activated via a new software enabled attachment (SEA), permitting on-machine or remote activation of increased hydraulic flow to 30 gpm at the standard system pressure.
The High Flow XPS factory option increases auxiliary hydraulic system pressure to 4061 psi for both models, while also increasing the hydraulic flow to 30 gpm; the 255 equipped with the High Flow XPS option offers customers class-leading auxiliary hydraulic performance not before available in a mid-size chassis machine.
Reengineering of lower machine components results in a stronger and stiffer undercarriage for improved machine stability and less pitching when filling the bucket with material. Its torsion suspension undercarriage delivers better operator comfort, track wear and material retention, plus the stiffer design results in smoother graded surfaces. The 255 loader offers a new 12.6-inch bar-tread narrow track option.
Improved operator’s office
The Cat 255 features a larger cab design with 22 percent more overall volume and 26 percent additional foot space. With a 2.75-inch increased interior width, the new cab expands footwell-to-ceiling height by 1.8 inches and allows for an additional 1.5 inches of hip room and 1.1 inches more width between the joysticks for improved operator comfort.
A range of mechanical and air-ride suspension seat options are available, including a high-comfort seat that is both ventilated and heated. New auto temperature control plus vent outlet positioning above the operator helps the new HVAC system to quickly cool the cab’s interior.
It can be equipped with a a 5-inch standard LCD monitor or an 8-inch advanced touchscreen monitor, depending on the technology package selected. The standard monitor features Bluetooth connectivity and supports functionality for rearview camera feed, creep, job clock, maintenance reminders and 32 languages; the advanced touchscreen monitor provides a higher level of control over standard monitor functionality, delivers advanced radio control and supports the multicamera 270-gree option and 32 language choices. The joysticks provide integrated control of the advanced touchscreen monitor so all machine function control and adjustments can be made without the operator removing his or her hands from the controls.
Featuring a low entry point, entering and exiting is much easier. The redesign allows the operator to open the cab door without the lift arms being fully lowered to the frame stops. A simplified two-step door removal process allows operators to quickly remove it without tools. Visibility is improved via the lower engine mounting, a 59 percent larger rear window and bigger top window that provides a 15 percent increase in viewable area.
Advanced technologies
The standard and advanced monitors can run Cat Smart Attachments, such as the dozer and grader blades and backhoe. These attachments are tied into the joysticks, and the machine automatically recognizes the type of attachment and the required joystick pattern for controlling it.
The available Cat Product Link Elite system tracks machine hours, location, asset utilization, provides fault code details and delivers advanced monitoring and machine health, that is remotely accessible via VisionLink. In addition, Product Link Elite provides remote flash and troubleshooting capabilities and quickly enables the remote activation of the SEA High Flow feature.
